Features of Cassava Flour Machine

Cassava Flour Machine

Cassava Flour Production Process Description and Flowchart:

Cassava flour is also called cassava whole flour, which is the fine powder, a little yellowish and grayish. Cassava flour is different from cassava starch. Cassava flour is made of whole cassava root, which keeps the natural cassava flavor and nutrition and contains more nutrient content than cassava starch. Cassava flour is a very popular food in most African countries. Cassava flour is widely used in people's daily life for making bread and cakes. Now more and more people in different countries and regions begin to like the food made of cassava flour.

Goodway is an expert in design and providing cassava flour machine and cassava flour processing line since 1991. Some customers also call our cassava flour processing equipment as cassava flour equipment, cassava flour making machine, or cassava flour production machine. Anyway, we devote ourselves to providing high-quality cassava flour making machines with competitive price.

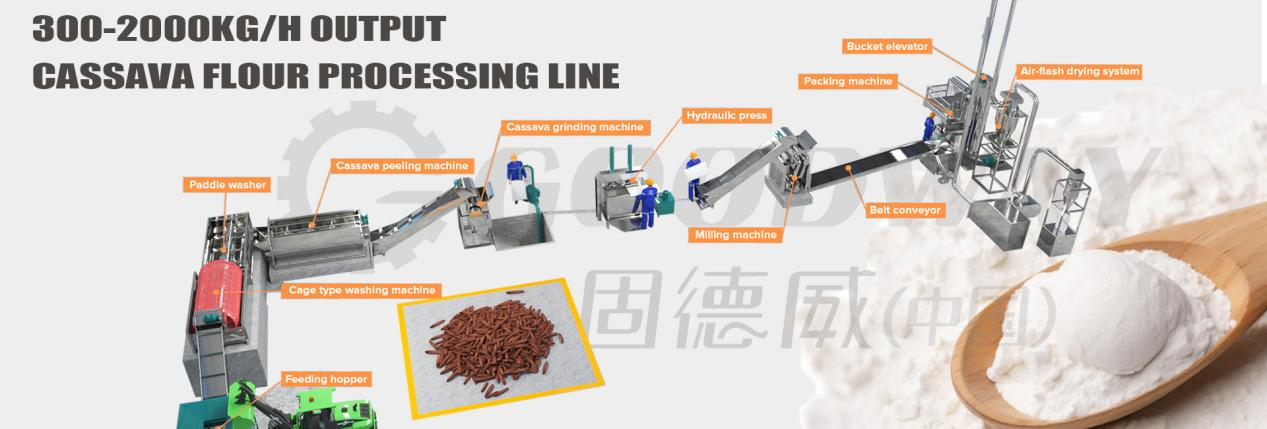

Multiple distinct operations are required in cassava flour production line: washing, peeling, grating, de-watering, breaking & sifting, cassava flour drying, milling, and packaging.

We provide below a brief description of the main steps of the cassava flour production process.


Cassava Flour Production Process

Cassava Flour Production Process

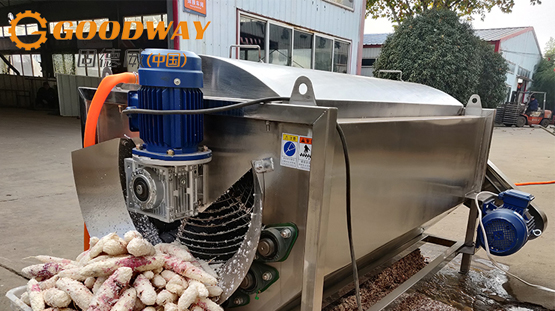

  • Cleaning and Washing Cassava Roots
    Cleaning and Washing Cassava Roots
    Wash the fresh cassava roots in clean water to remove the surface mud and sand. It's the first step of the cassava flour process and very important for the quality of final cassava flour(HQCF).
  • Peeling Cassava Roots
    Peeling Cassava Roots
    Peel the washed cassava roots to remove the outer brown skin and inner thick cream layer. The water source should be checked regularly to ensure it is not dirty or contaminated.

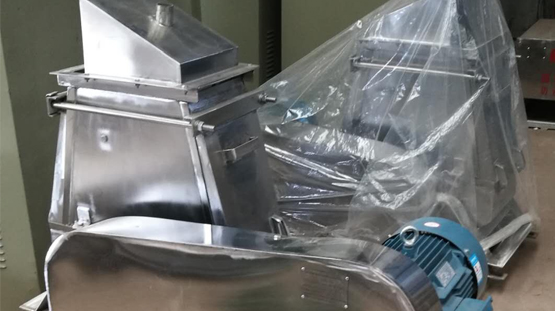

  • Grating Peeled Cassava Roots into Mash
    Grating Peeled Cassava Roots into Mash
    Load the grater with washed roots while the engine is running to grate peeled cassava roots into mash. The grating drum and all food contact areas should be made from stainless steel.
  • De-watering Mash into Wet Cake
    De-watering Mash into Wet Cake
    Load the bags directly on to a hydraulic press. Lift and press the jack handle up and down until it becomes hard to move. Repeat the process several times each day until no more water comes out of the bag to produce a firm wet cake.

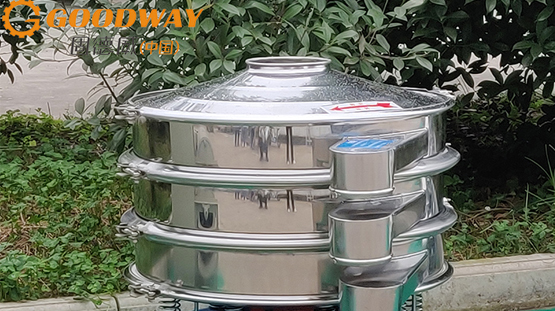

  • Breaking Wet Cake and Sifting Wet Cake into Grits
    Breaking Wet Cake and Sifting Wet Cake into Grits
    Breaking the wet cake into small pieces (grits) and remove the lumps to obtain uniform size grits(wet coarse cassava flour). All food contact areas should be made from stainless steel.

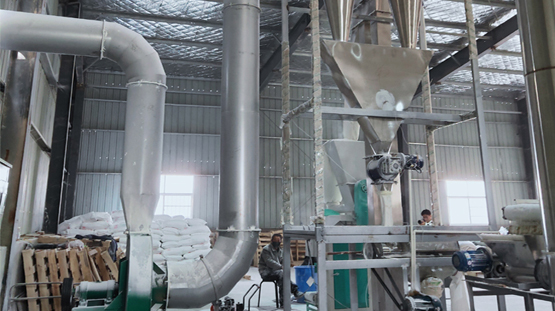

  • Drying Grits into Dried Coarse Cassava Flour
    Drying Grits into Dried Coarse Cassava Flour
    Effectively dry the wet grits into dried coarse cassava flour(HQCF) with low moisture content by the principle of heat transfer exchange. The drying process is more reliable and of higher quality.
  • Milling Coarse Flour into Fine Flour(HQCF)
    Milling Coarse Flour into Fine Flour(HQCF)
    Milling the dried coarse cassava flour into fine cassava flour(HQCF) with the uniform size, then pour the flour into a plastic lining inside a woven polythene sack.
