The commonly physical operation which is used for the separation of cassava residues from cassava slurry by interposing a medium(filter) through which only the raw starch
milk can pass (depending on the pore size and filter thickness).
Oversize particles in the feed cannot pass through the lattice structure of the filter, while fluid and small particles pass through, becoming filtrate.
Processing Capacity: 2-4Tons/hour
Application Scope: Starch slurry and residues separation

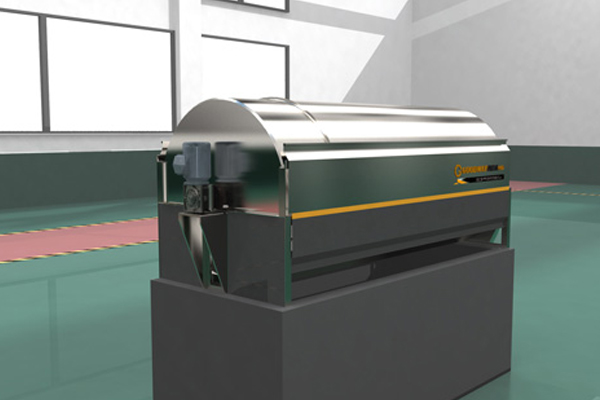

Product Introduction: Fine fiber circular sieve, cassava sieving machine, cassava sifting machine for cassava starch and flour processing
1. High starch quality
2. Continuous and smooth operation
3. Optimal extraction
4. Minimize fiber in starch milk
Product Application of Fine Fiber Circular Sieve
1. Starch and pulp separation
2. Pulp and fine fiber separation
3. Fiber screening from cassava starch
Technical Parameters of Fine Fiber Circular Sieve
|
Model no.
|
GD-YTX-300
|
|
Production capacity
|
3-4ton/hour
|
|
Motor power
|
2.2kw
|
|
Mesh number of screen cloth
|
100-120mesh
|
|
Filtration area of screen cloth
|
1.98m2
|
|
Dimension(L×W×H)(mm)
|
2000×640×700
|
|
Weight
|
150kg
|
|
Model no.
|
GD-WL-800
|
|
Production capacity
|
2-4ton/hour
|
|
Motor power
|
0.75kw
|
|
Mesh number of screen cloth
|
120-140mesh
|
|
Filtration area of screen cloth
|
3.78m2
|
|
Dimension(L×W×H)(mm)
|
2300×920×900
|
|
Weight
|
150kg
|
