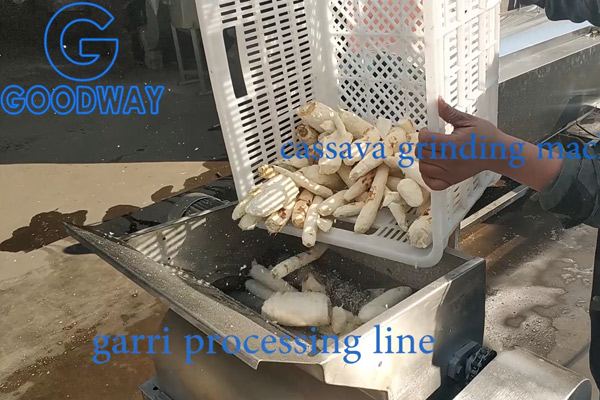

Cassava Grater Machine(Cassava Grinding Machine)
I WANT TO BUY PRODUCTS

Cassava Grater Machine(Cassava Grinding Machine)

CONTACT NOW

Cassava Grater Machine(Cassava Grinding Machine) VIDEO
Features Related Products

Features of Cassava Grater Machine(Cassava Grinding Machine)

Processing Capacity: 3-6Tons/hour
Application Scope: Grating the cassava into the slurry
Product Introduction: Cassava grater machine, cassava grating machine, cassava grinder, cassava grinding machine for cassava flour and Garri processing

1. The pulverizing cavity looks like a dropping cave, which can prevent the circumfluence of the raw material.
2. The hidden rotors can pulverize the materials completely.
3. Two level pulverizing: rasp-type and hammer-type pulverizing with super efficiency.
4. The distance between sifter and sinker is adjustable, which can make rough pulverizing, fine pulverizing and micro pulverizing are available in one machine.
5. Easy-open door makes maintains convenient.
6. The sieve will be bounded up after pressing. This enables the replacement much easier and can close much tighter.

Product Description of Cassava Grater Machine

Cassava grater machine adopts two level pulverizing, the first level is rasp-type pulverizing, and the second level is hammer-type pulverizing, the combination of two levels sufficiently makes up their individual defects. It can be used for grating raw materials such as cassava, potato, sweet potato, yam etc. The efficiency can be improved by 45%-90%comparedg to the universal hammer mill.

Technical Parameters of Cassava Grater Machine

ModelNo.

GD-G-660

GD-G-900

MachineMaterial

StainlessSteel

Stainless steel

Capacity

3Tons/Hour

6Tons/Hour

Voltage

380V &50/60Hz 3Phase

380V &50/60Hz 3Phase

Power

11KW

15KW

Weight

350KG

450KG

Dimension(L×W×H)

1300×1000×1400mm

1300×1300×1400mm
