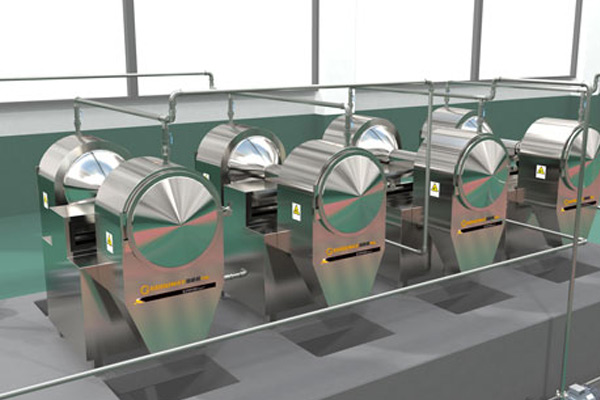

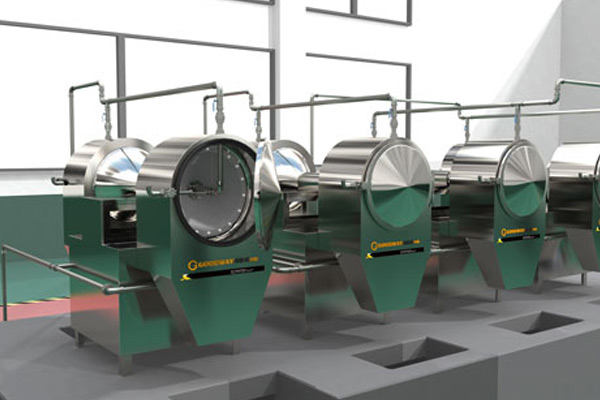

The slurry is pumped directly to the center of the conical rotating screen basket. Under centrifugal force, the starch is flushed through the screen onto the back of the basket and leaves the centrifugal sieve while fiber/pulp sliding off the screen and leaves the sieve from the front outlet. Water spraying nozzles inside and outside of the basket ensure fiber/pulp washing and prevent screen blockage.
Processing Capacity: 5-15Tons/hour
Application Scope: Centrifugal sieving to remove the residues
Product Introduction: Centrifugal sieve, cassava sieving machine, cassava sifting machine for cassava starch and flour processing
1. High starch quality
2. Continuous and smooth operation
3. Optimal extraction
4. Minimize fiber in starch milk
5. Automated cleaning
6. Multi capacities flexibility
7. Skid mounting option
Product Application of Centrifugal Sieve
1. Starch and pulp separation
2. Pulp and fine fiber separation
3. Fiber screening from cassava starch
Technical Parameters of Centrifugal Sieve
|
ModelNo.
|
MachineMaterial
|
overall size(L×W×H)
|
Weight
|
Power
|
Capacity
|
|
GD-LXS-600
|
Stainless steel
|
1685×550×1700cm
|
390kg
|
4.0kw
|
5-8tons/hour
|
|
GD-LXS-500
|
Stainless steel
|
1880×670×1555cm
|
390kg
|
5.5kw
|
8-10tons/hour
|
|
GD-LXS-600
|
Stainless steel
|
1370×850×1800cm
|
390kg
|
5.5kw
|
10-15tons/hour
|
